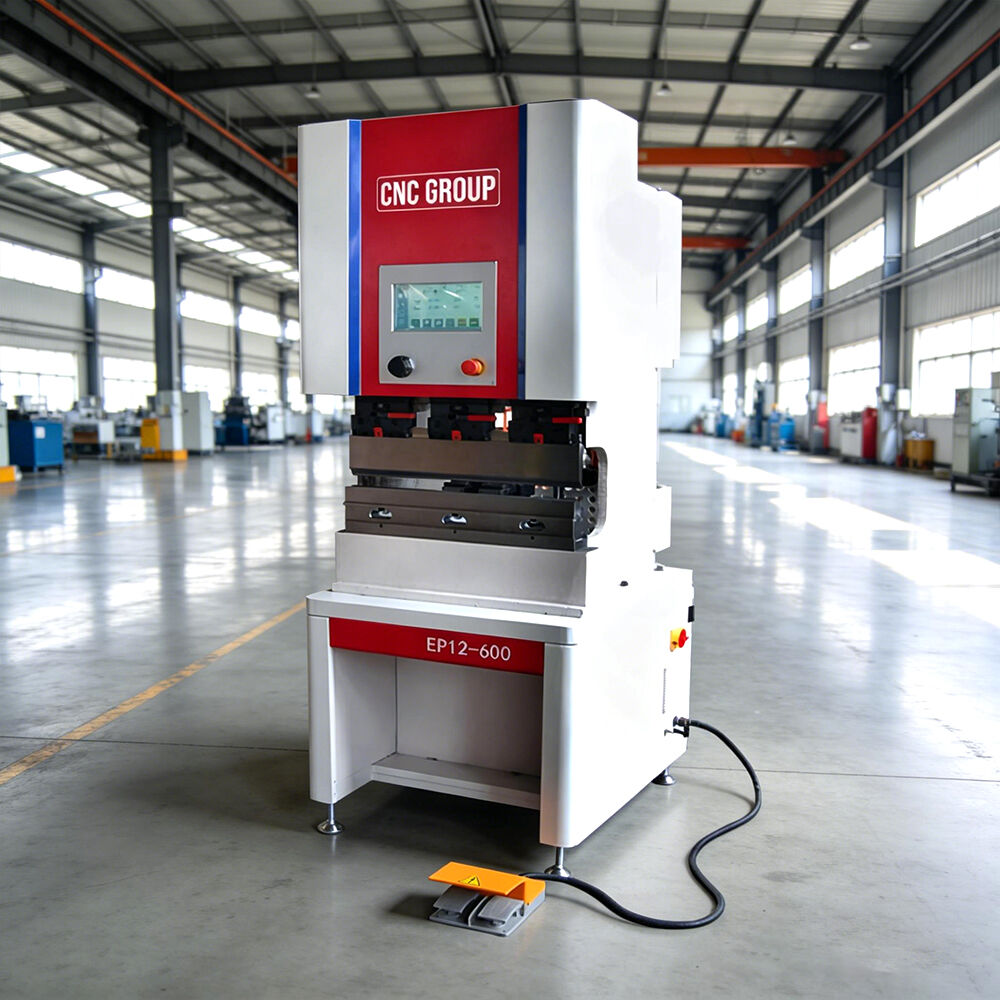

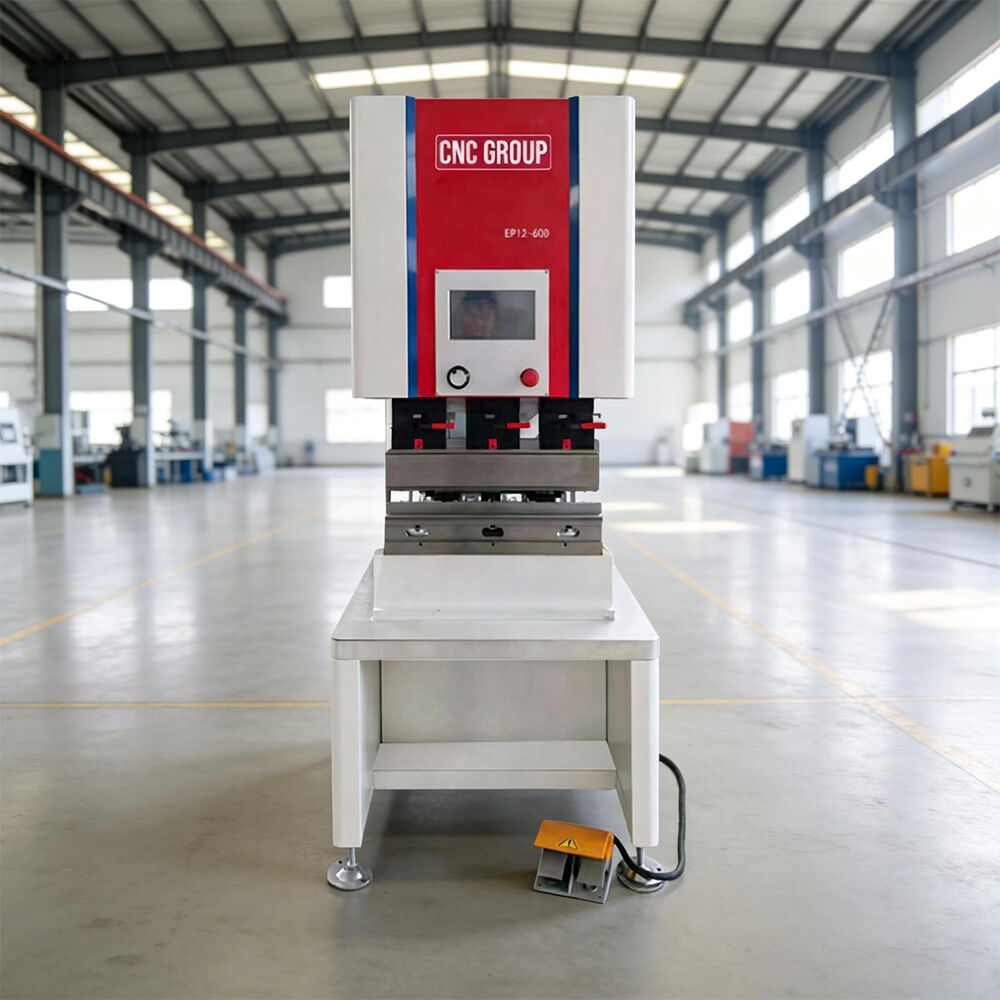

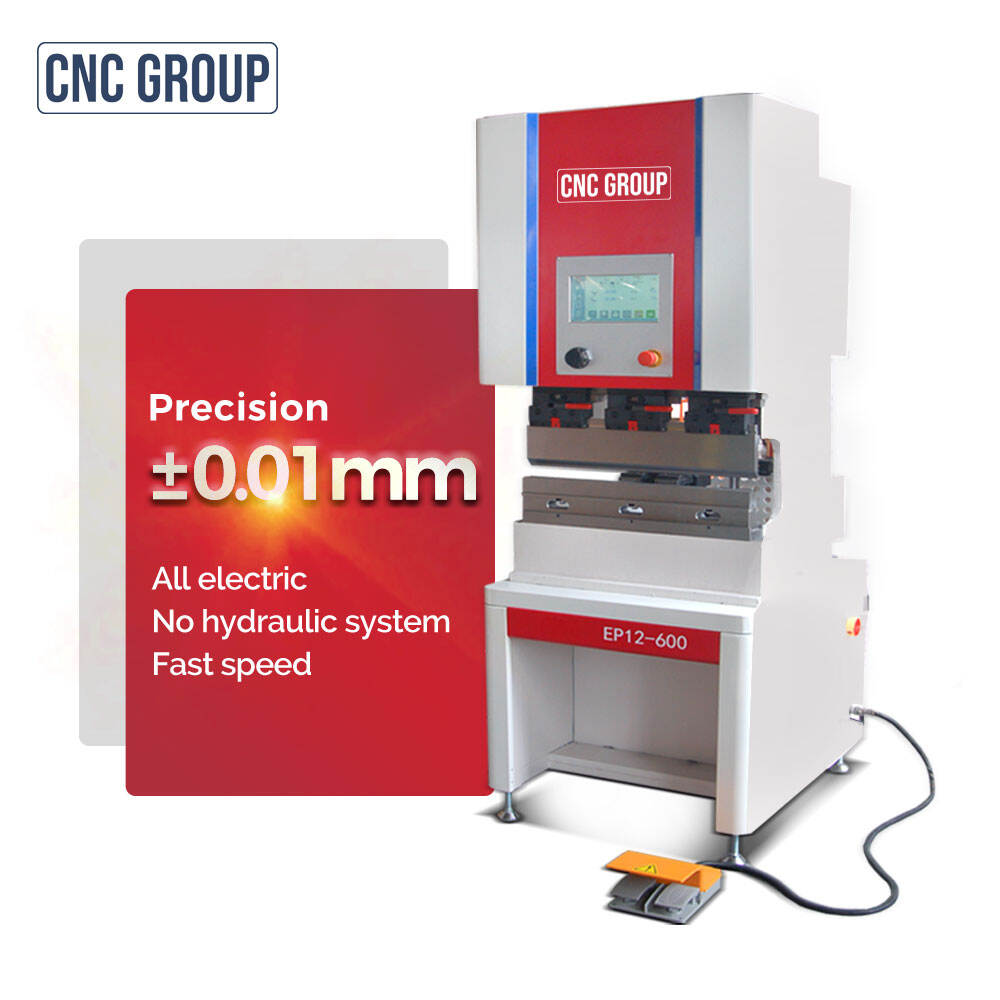

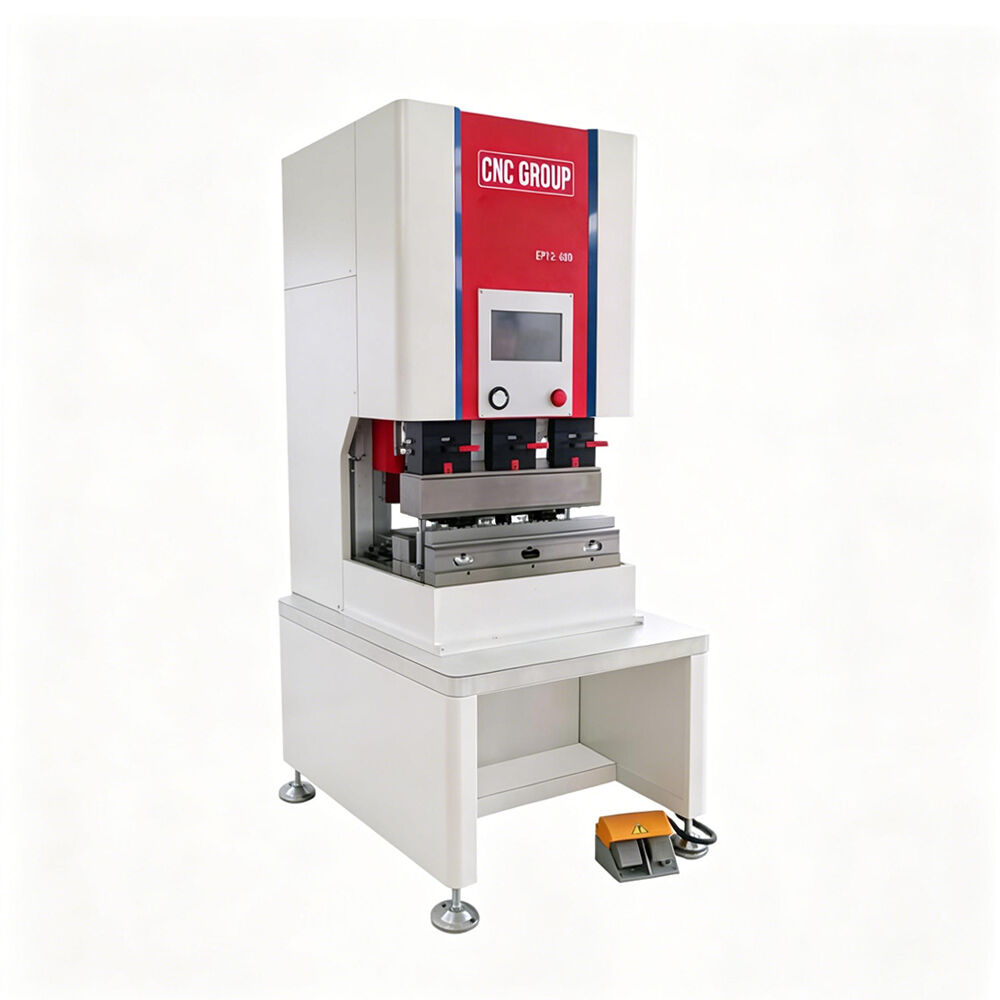

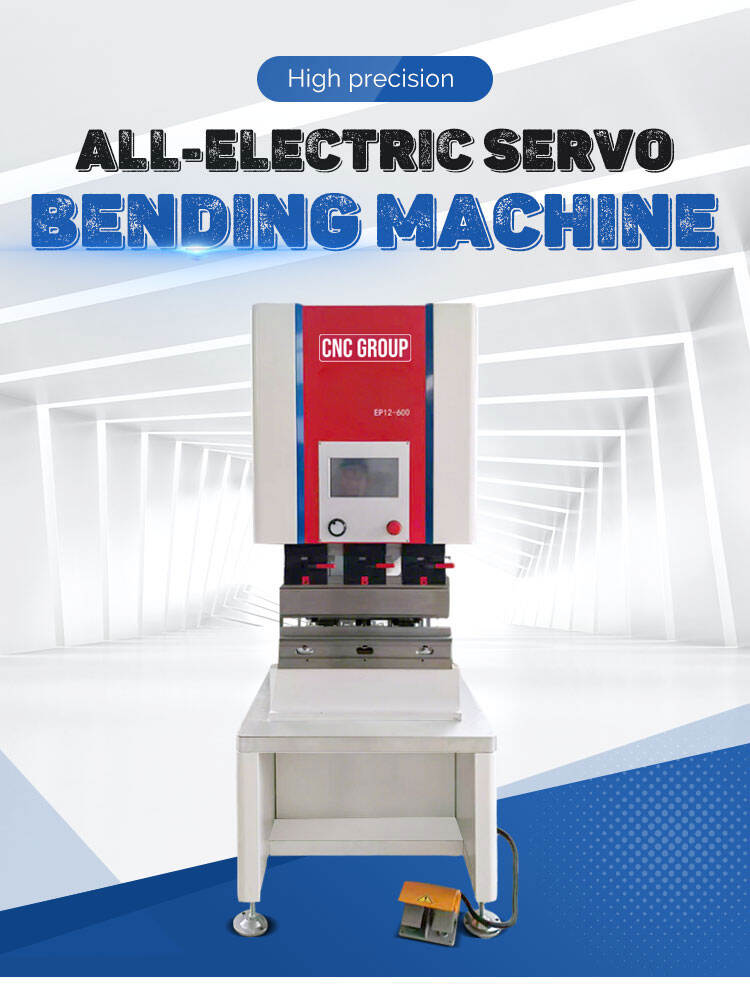

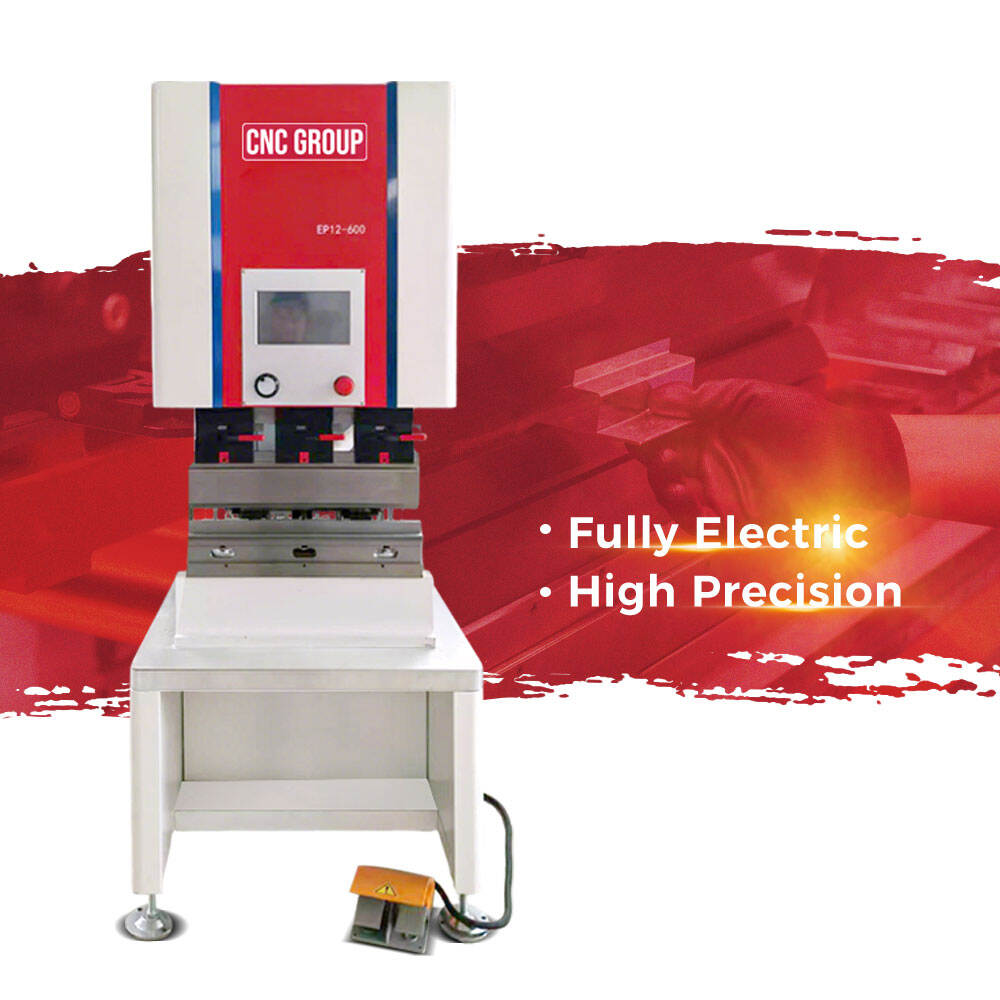

All-electric Servo Bending Machine

High precision and fast speed

Introduction

Performance and characteristics

1.High speed: all adopt servo motor direct drive, the transmission structure has fast response, fast speed ad high efficiency.

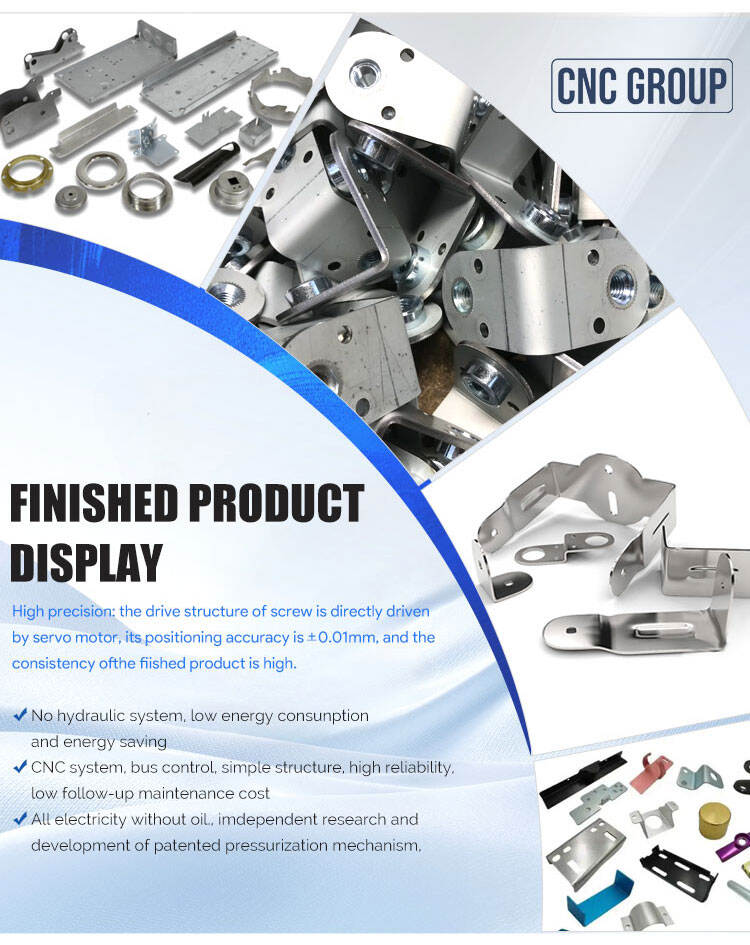

2.High precision: the drive structure of screw is directly driven by servo motor, its positioning accuracy is ±0.01 mm, and the consistency of the finished product is ligh.

3.Green envirobnmental protection: all electicity without oil, independent research and development of patented pressurization mechanism, the main transmission efficiency is more than 95%, about 60% energy saving than the same type of all-electric servo bending machine.

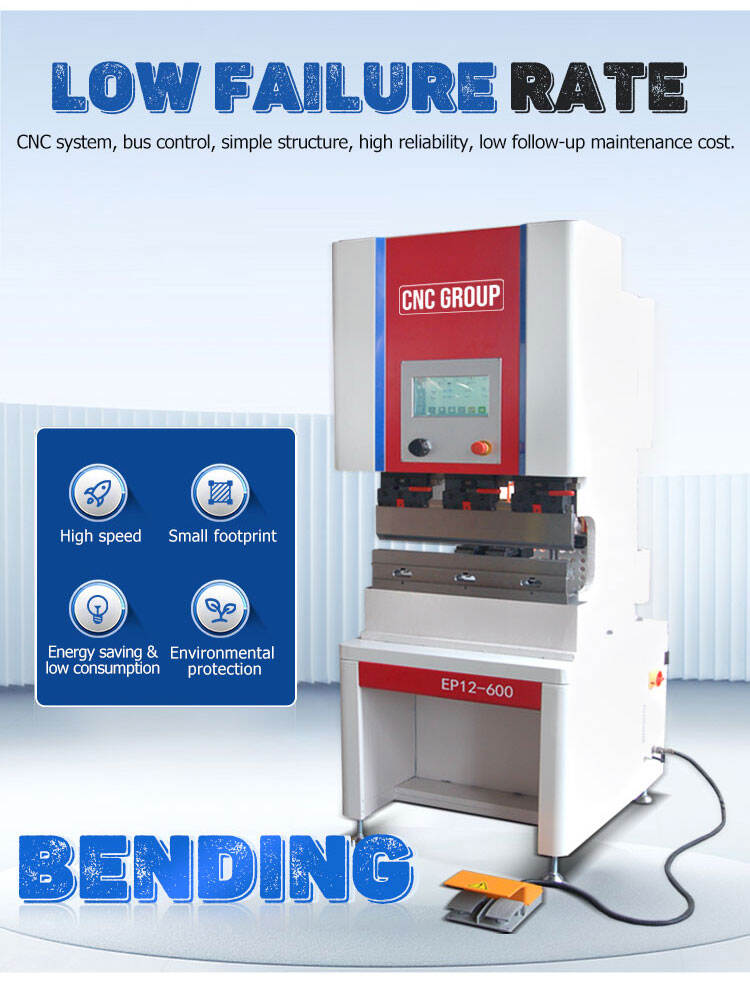

4.Low failure rate: CNC system, bus control, simple structure, high reliability, low follow-up maintenance cost.

5.Energy saving and low consumption: no lydraulic system, low energy consunption and energy saving.

6.Small footprint: save space and reduce the cost of factory floor space.

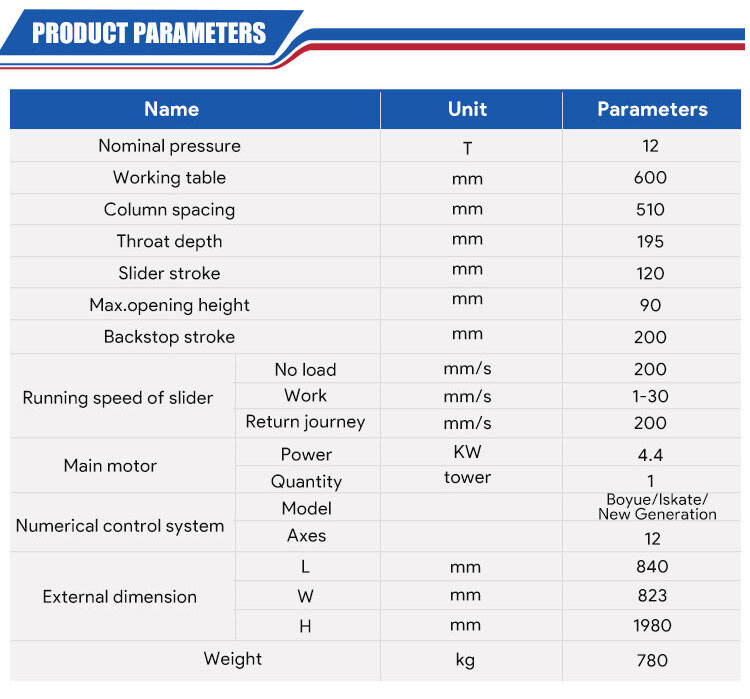

Product Parameters

Name	Unit	Parameters
Nominal pressure	T	12
Working table	mm	600
Column spacing	mm	510
Throat depth	mm	195
Slider stroke	mm	120
Max.opening height	mm	90
Backstop stroke	mm	200
Running speed of slider(No load, Work,Return journey)	mm/s	200, 1-30, 200
	mm/s	200, 1-30, 200
Main motor{Power, Quantity}	KW, tower	4.4,1
Numerical control system(Model， Axes)	/	Boyue/Iskate/New Generation, 12
External dimension\|(L, W, H)	mm	(840, 823, 1980)
Weight	kg	780
